2 Inch Temporary Safety Fencing Construction Site Galvanized Portable Chain Link Panels

Construction Site Galvanized Portable Chain Link Fence Panels

Portable chain link fence panels introduction

Model NO.: temp chain link fence Standard: ASTM A392-06 Standards Compliant
Base: 36"Base Stands for Added Stability Steel: Galvanized Steel Construction
Finish: Corrosion-Resistant Zinc Coating Height: 4FT 6FT 8FT
Width: 9.5FT,10FT,12FT Trademark: Top Fence
Transport Package: Metal Pallet to Meet Nz and Aus Custom Required
Specification: 6FT X 12FT and so on
Origin: China HS Code: 7308900000

Portable chain link fence panels specification

Portable chain link fence panels details

1. Chain link fence

Chain mesh roll size: Hole 2 inch x2 inch Wire: 12.5ga.

2. Pipe and clamp:

1 5/8” OR 1 3/8” GALVANIZED STEEL TUBING 16 ga

3. Temporary fencing feet:

Size:400mmx600mm Frame pipe:38ODx1.5mm Standpipe:32ODx1.2mm

TEMP STAND

FREE STANDING GALVANIZED STEEL TEMP STAND WITH 2 VERTICAL PEGS WHICH SLIP EASILY INSIDE TEMP PANEL FENCE – NO TOOLS NECESSARY

4. Construction temporary fencing clamps:

GALVANIZED CONNECTORS

CONNECTING MULTIPLE TEMP PANELS TOGETHER ADDING PERIMETER SECURITY FOR FAIRS, CONCERTS, PARKING LOTS,

BALLGAMES, AND OTHER EVENTS.

Portable chain link fence panels gate

Personal Gate: The gate of Temp Fence chain link fence is available with 3' wide opening Pedestrian
gate with hinges and pad-lockable latch, giving a path to safely and efficiently allow the crows.

Swing gates: The swing gate fully open to allow trucks to pass through. If the opening is 12 feet or less (such as a pedestrian entrance), a single swing gate is sufficient. Swing gates usually open inward (toward the property), unless impossible to do otherwise. For wider openings (vehicle entrances), double swing gates are recommended as this configuration requires less room to operate than a single, longer gate.

Portable chain link fence panels features

360° full welded tubular frame

Galvanized 60 or 28 microns to anti-corrosion

Installs on any surface including ground, asphalt, or concrete

ASTM A392-06 standard minimizes the amount of corrosion

The welding corner joints are galvanized sprayed painting to cover any exposed metal.

Galvanized saddle clamps, nuts, and bolts are used to attach panels together.

Portable chain link fence panels packing and loading

1. temporary fence panel:
on the metal pallet ( there is a carton board around the panel, to reduce the crash)

2. Base:
on the metal pallet (plastic film on around, to keep the base clean)

3. Tie wire & Clamps:
Tie wire is in the role, and then in water-proof paper outside
clamps are in small cartons.

2 inch temporary safety fencing

sport field galvanized temporary safety fencing

2 inch temporary site security fencing

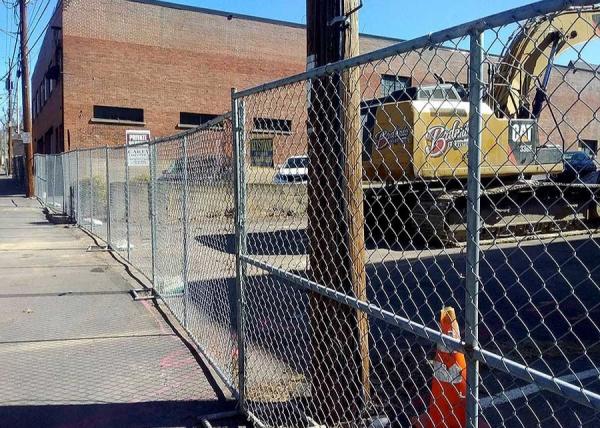

2 Inch Temporary Safety Fencing Construction Site Galvanized Portable Chain Link Panels Images
